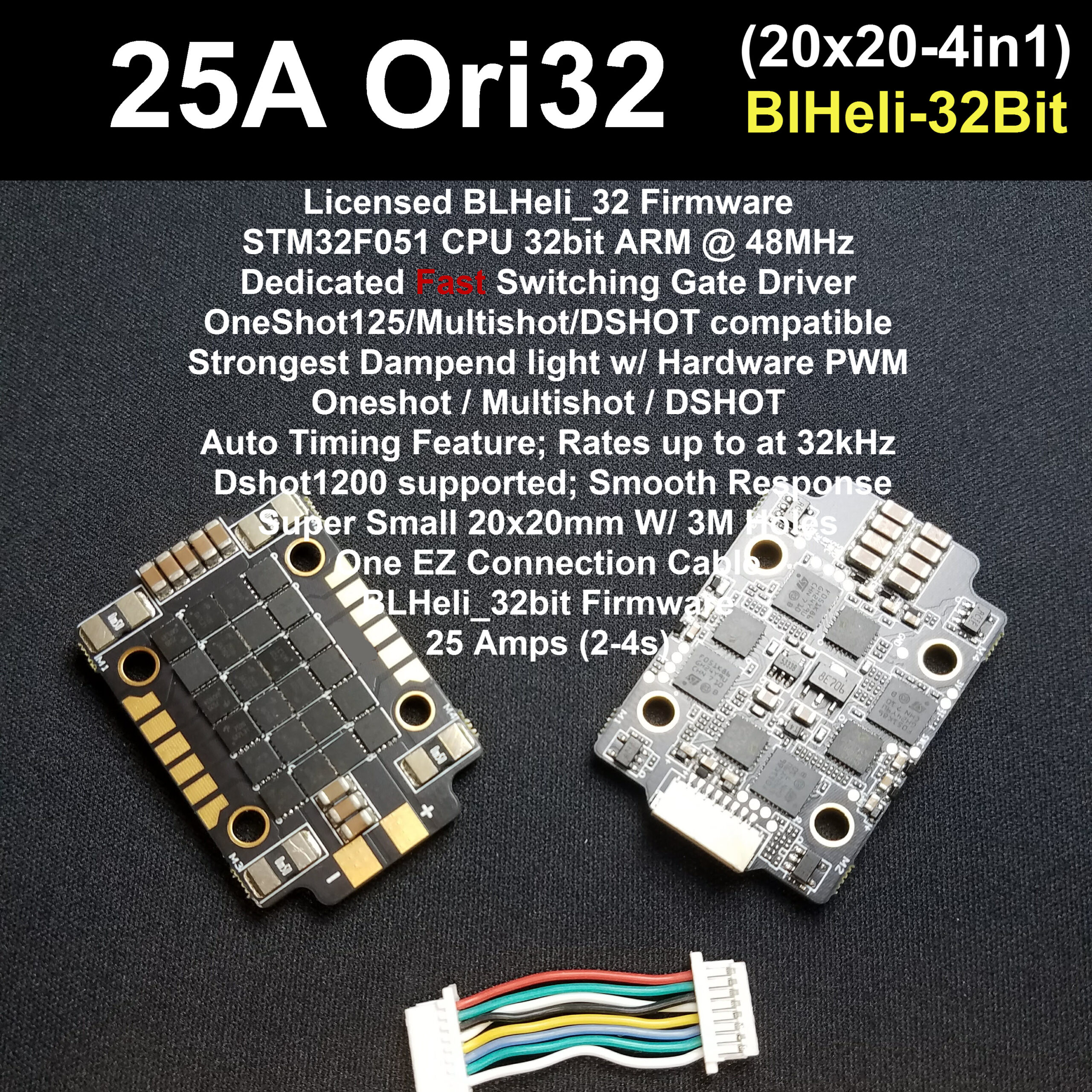

25A Ori32 4in1 ESC (20×20) BLHELI_32bit – (MUILTSHOT)

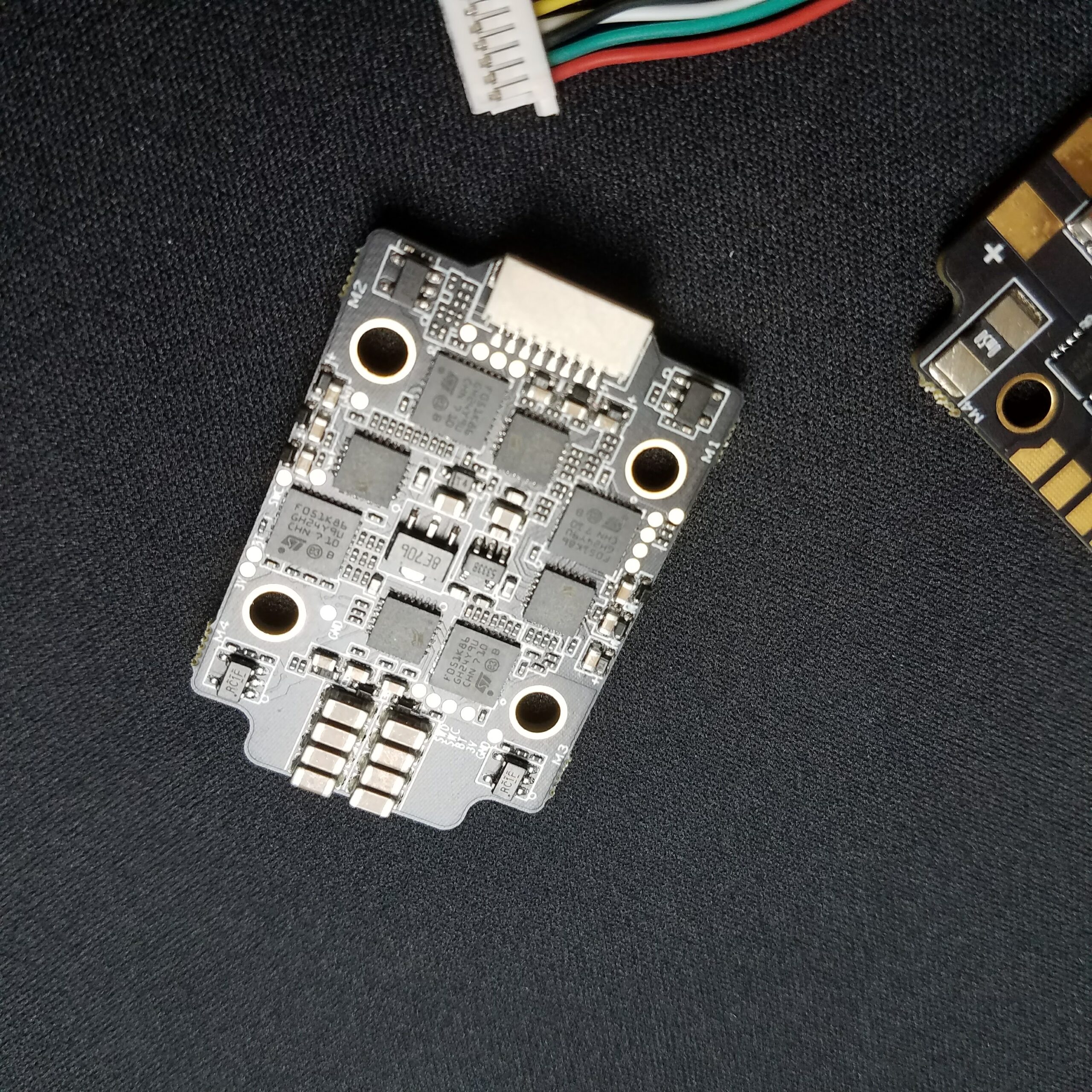

All 4in1 ESCs have the bottom sensitive parts protected in Silicone Conformal Coating.  Now in 32.bit software . With a super compact and sleek design, True 25Ax4 Amp rating. Huge input pads. Perfectly Placed Output pads. 20×20 mounting holes with 3m Screw holes for easy stacking. Motor pout connections in optimal spot  4 BLheli_s ESC in a small but powerful package.

One cable connection with F4 omnibus. Has vbat passthrought for a true one cable connection.

Specifications

• 20 mm x 20 mm mounting hole spacing
• 100A continuous (25A per motor)
• BlHeli_S
• D-Shot ready
• 2s – 4s compatible
• Built in Current Sensor
• One cable F4 obus connection
• Voltage sent to flight controller
•  Super small , one cable – Easy Install
• High quality components
• Silicone Conformal Coated

Firmware : Download the suite (suite has the firmware)  from the direct source for always the newest and clean copy: https://blhelisuite.wordpress.com/        “BLHeliSuite32_xxx00.zip” is the “32bit” suite.

Now pair with OMNIBUS F3 or F4 with the mod for easy install

OMNIBUS F4 Nano V3 – ESC telemetry mod for Ori32

Here’s a diff for the mod. Don’t forget to select one of DSHOT for ESC/Motor protocol.

• resource ADC_CURR 1 NONE
• feature ESC_SENSOR
• serial 2 1024 115200 57600 0 115200
• set current_meter = ESC
• set battery_meter = ESC
