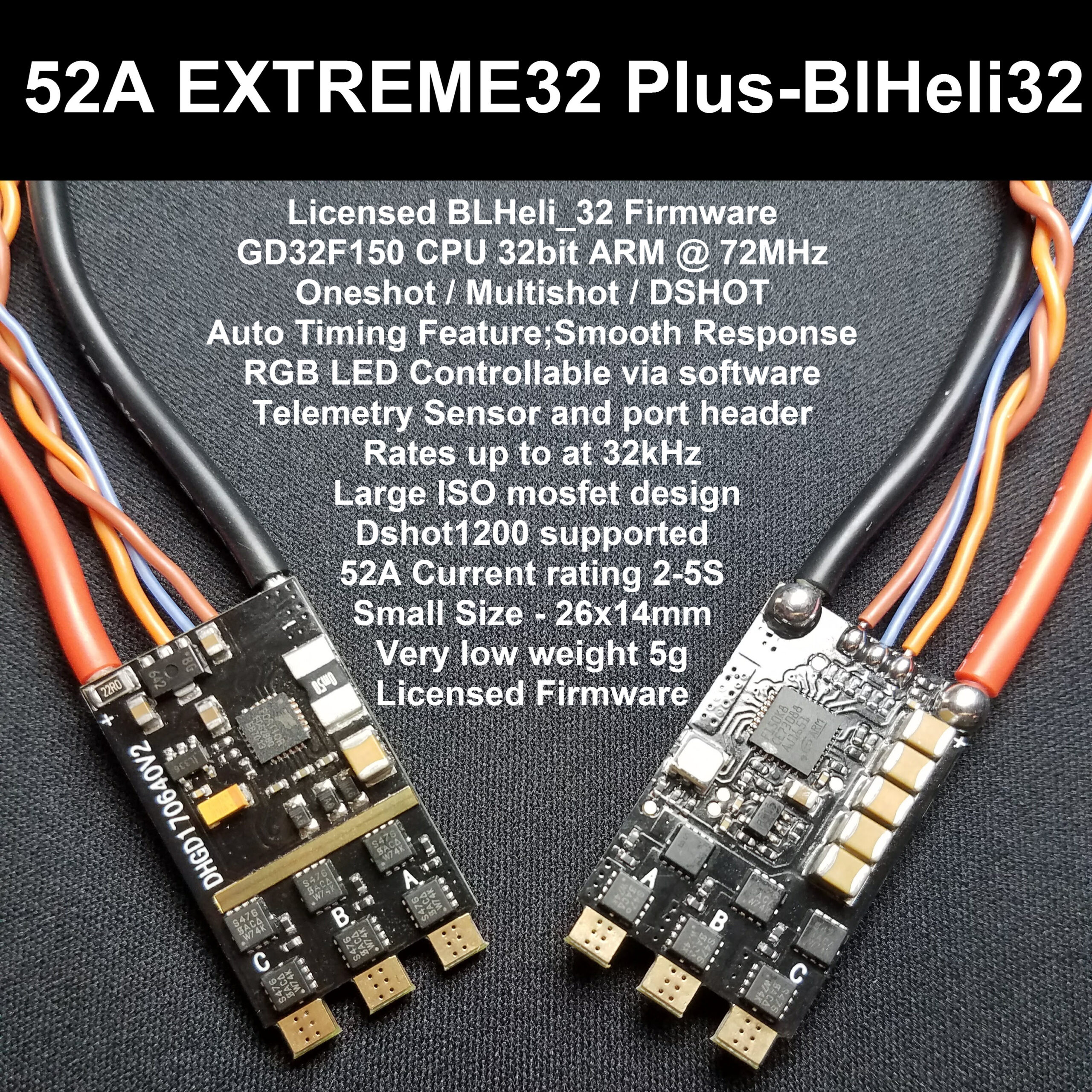

52A EXTREME32 Plus – 32BIT ESC BLHELI_32 (D-Shot1200)

35A 2-5S F0 Blheli_32bit Dshot1200 Brushless ESC.  Licensed BLHeli_32 Firmware. These BLHeli_32 33amp ESC is the latest evolution in BLHeli ESCs. BLHeli_32 is the third generation of BLHeli code, following base BLHeli and BLHeli_S. Fully Licensed and upgradeable via the Blheli Suite. Large mofet design for extra power.

Download the newest and clean copy here:  https://blhelisuite.wordpress.com/

Running on ARM 32bit MCUs, the latest iteration of BLHeli can run input signals with lower latency at faster rates.  DShot up to at least DShot1200, and at rates up to at least 32kHz. The 32bit MCU also allows additional functionality.

Programmable pwm frequency, which allows motors to run more smoothly; Auto Timing, which runs motors efficiently and protects against desync; Variable Brake Force, allows control of braking force on fixed wing props; Improved bidirectional mode

Specification:

• Brand name: EXTREME32
• Item name: 52A EXTREME32 ESC
• Con. Current: 52A
• Peak Current(10s): 60A
• LBEC: NO
• SBEC: NO
• Lipo: 2-6S
• Programming: YES
• Weight: 3g
• Size(PCB): 27*16mm

Features:

• – Blheli_32bit
• – Support Dshot 1200 in default out from factory
• – Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600

Package Included:

1 X 35A ESC  35A 2-4S ST/ARM Blheli_32bit Dshot1200 Ready RaceSpec FPV Racing Brushless ESC Licensed BLHeli_32 Firmware
