Output connector difinition :
Power Connector
Red: Power +
Black: Gnd
Video Connector
Yellow: Video Out
Black: Gnd
*The Camera LCD will turn off automatic if plug video out connector into vtx module.
Trigger Connector
Red: Photo Trigger
White: Video Trigger
Black: Gnd
*Short Red and black for photo function/Short White and black for Video function
For Easy FPV flying, Horyzon V3 will automatic record video when power up, it can be stopped by
‘Video’ buttom or video function trigger.
Â
HoryzonHD is a revolutionary Full HD 1080P camcorder and FPV camera. It has a seperated cam module connecting the mainboard module by 20cm cam wire. It creats a lot of possibility and saves a lot of weight for HD FPV and other applications. Dedicated Thread on RCGROUP:http://www.rcgroups.com/forums/showthread.php?t=1630045 Â Features of V3 plus:


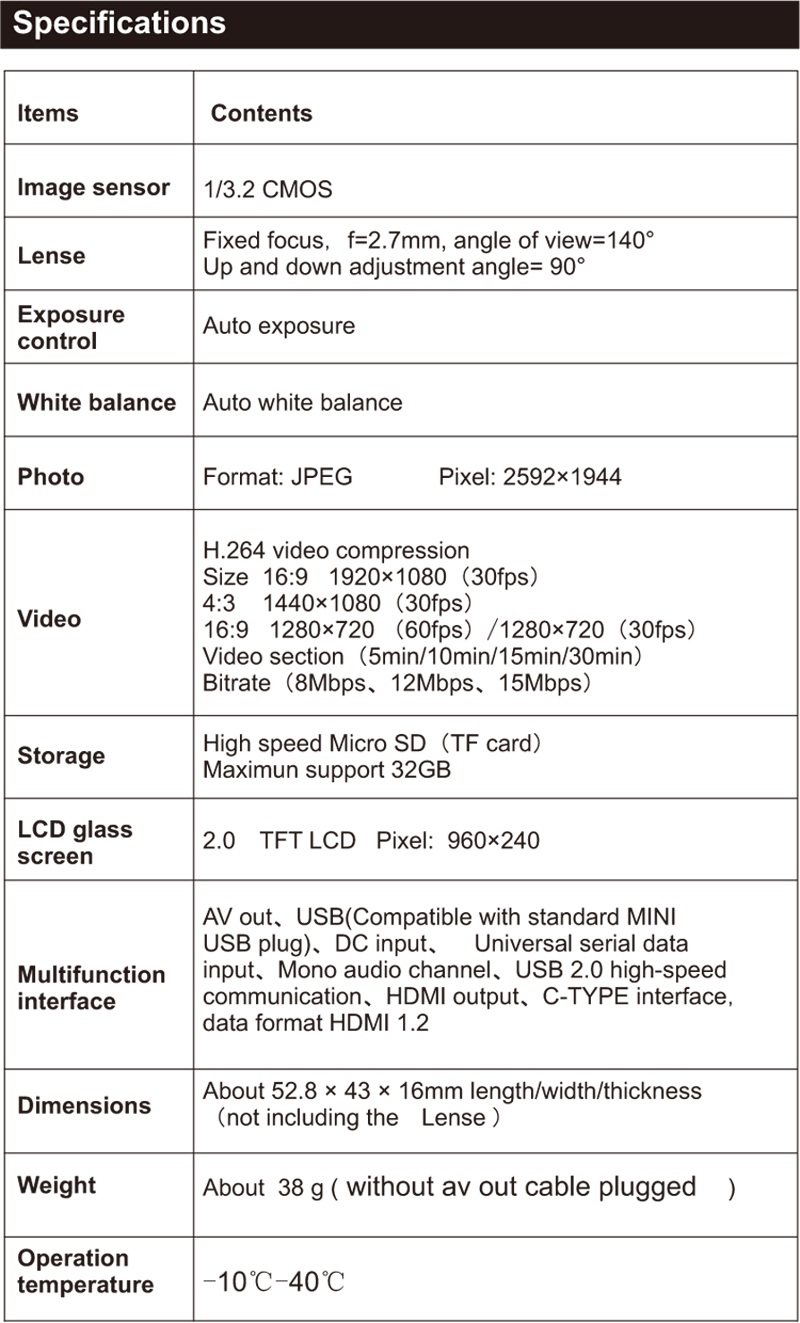

 Your Purchase will include:
1x HoryzonHD 1080P V3 camera
1x HoryzonHD V-REG V2 version
1x USB cable
1x avout cable and Video&Photo Trigger cable   Power supply plug pin definition Black- GND Red- 4-5.5V DC in
   Video&Photo Trigger pin Definition: Black-GND White-Video Trigger Red- Photo Trigger
