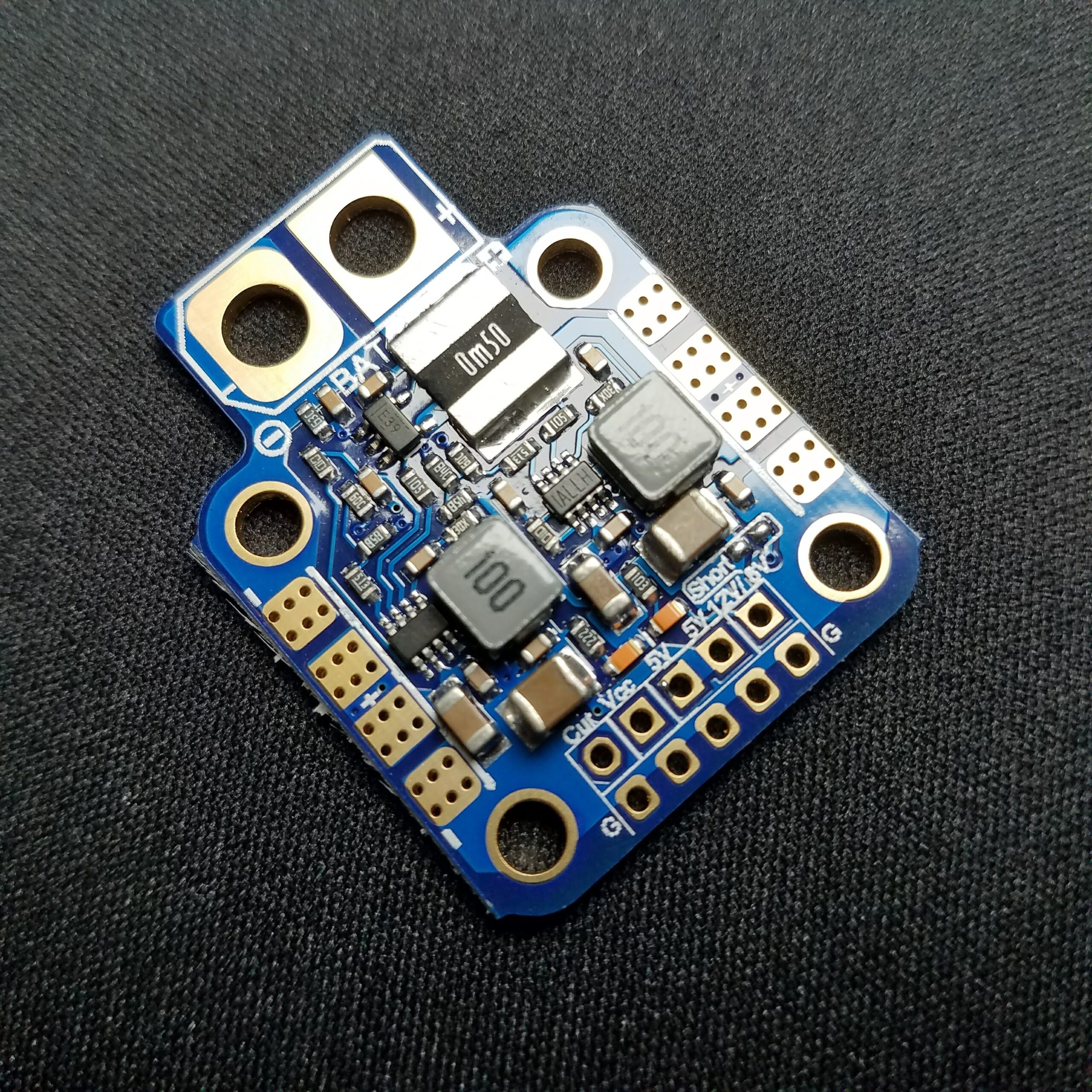

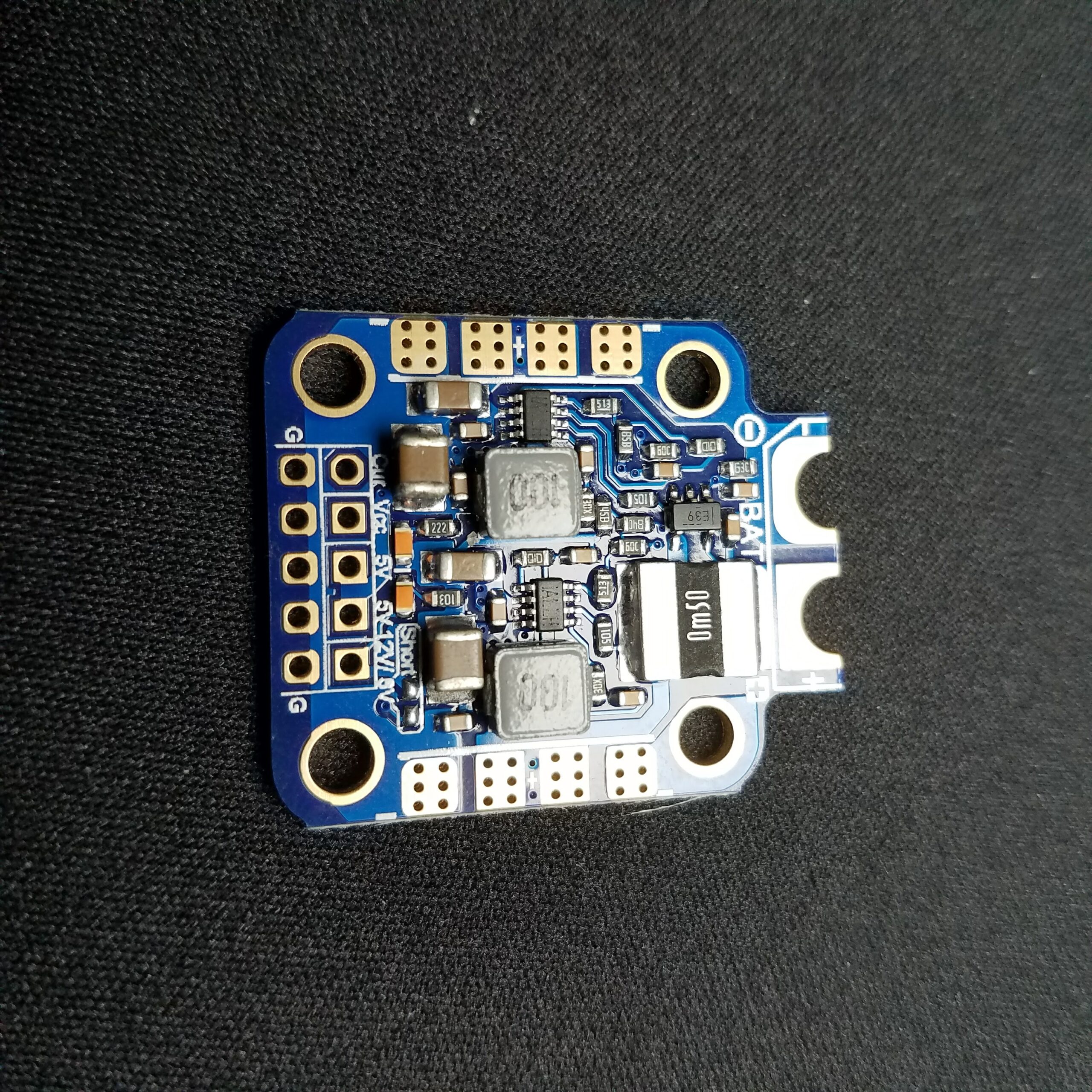

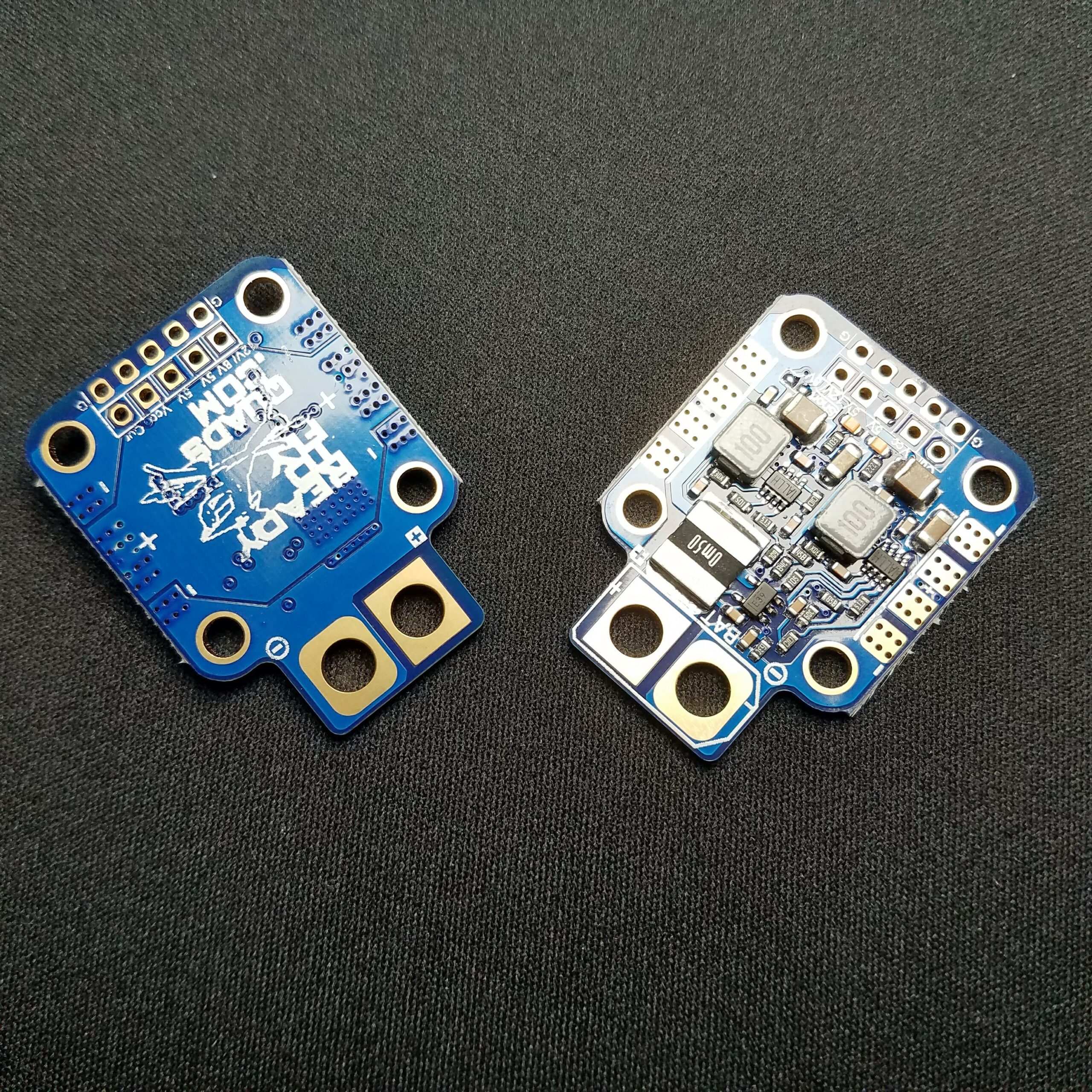

RTF Mini Power PDB (20x20mm, 5v & 8v/12v Reg, Current Sensor)

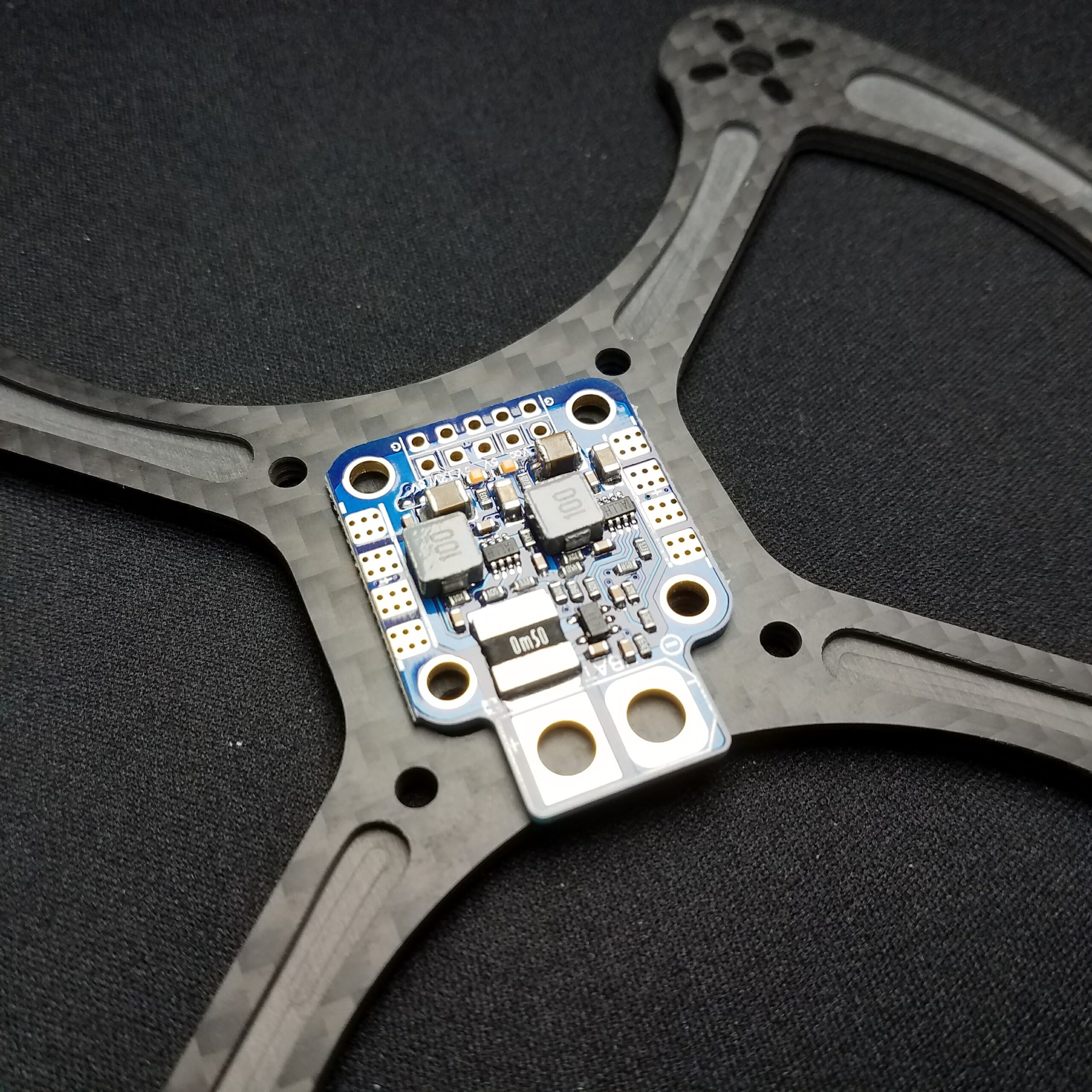

The Mini Power PDB uses the small 20x20mm mounting hole pattern or super tight builds . This  Mini Power PDB features an easy to solder layout with thro hole vias for maximum strength . The Mini Power PDB has all the power needs inwith an onboard 5v and a selectable 8v or 12V BEC as well as a  Current Sensor. It can support 2-5s LiPo battery. One can simply solder power wires directly to the PDB and secure it in place, reducing stress on the solder point, Or solder the connector director to the PDB, Or even cut a little of the tab off for  tight builds . Both voltage regulator can supply up to 2.5A of current,  easily powering all your VTX, camera, FC, and LEDs.

• Input voltage range (2S-5S operation)
• PDB: 4x30A (Max.4x40A)
• Regulated 5V (2A, 2.5A Max) and 10V (2A, 2.5A Max) outputs
• Current Sensor ~120A
• 1x Battery input, 4x ESC outputs. 2x BEC 5V outputs, 1x BEC 8V outputs.
• Current Sensor, Gnd pads, Video Transmitter Signal & Gnd pads
• Dimensions: 30x28x4mm, Weight: 4.5g
• Mounting holes 20x20mmΦ3mm
• PDB (ESC outputs)
