All units are tested and flashed with stable BetaFlight 2.3.3 . Take advantage of all the new features, Automatic Notch filter, turtle mode, Camera control,SmartAudio, Increased motor output resolution, many improvements, and much , more

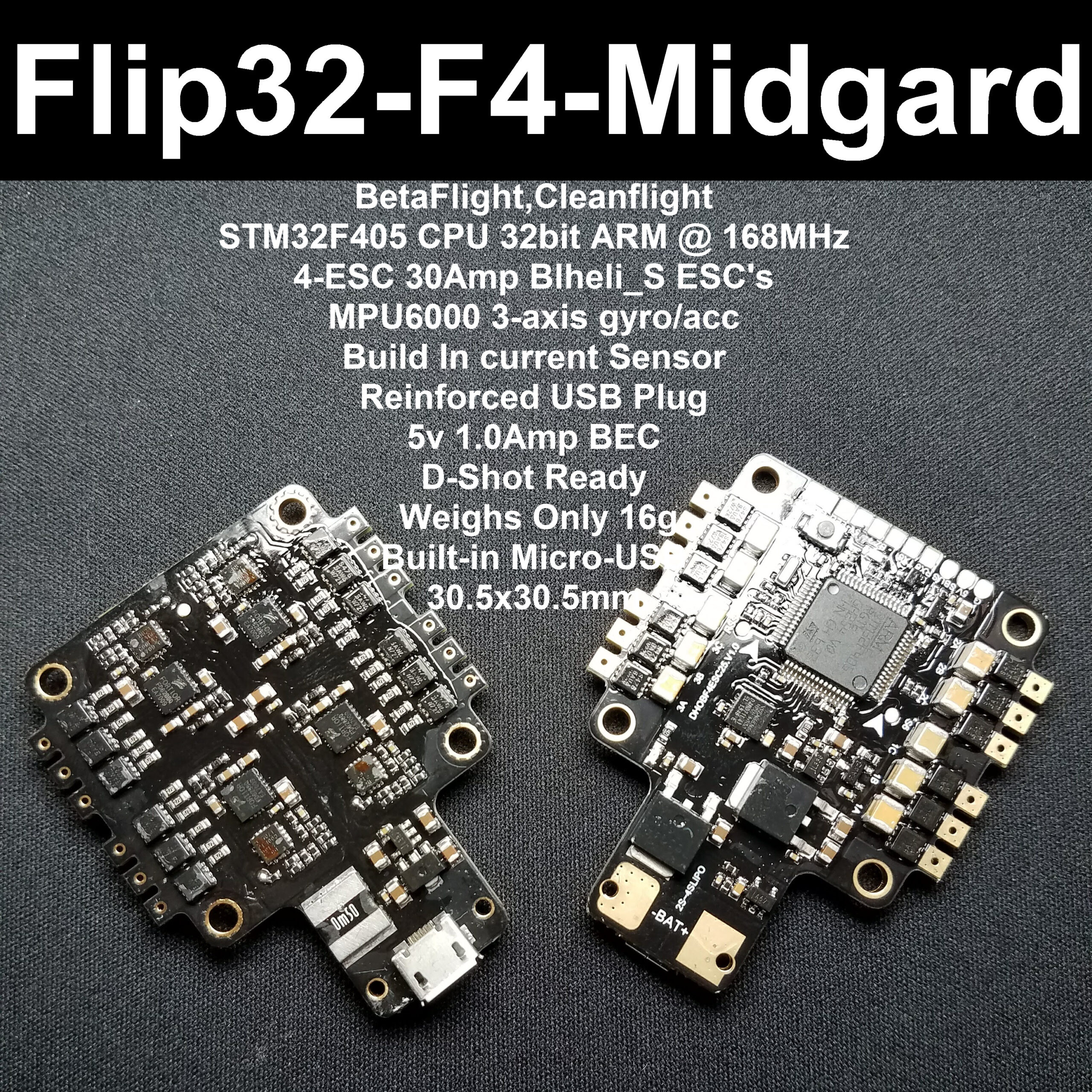

Bring it back down to earth. The FLIP32-F4-AIO Midgard still sports a powerful F4 processor + 4 True 30A Speed controllers packed into one compacted board. “middle yard” features compared the Asgard, but still capable of DShot 600, Clearn MPU6000 Gyro, this AIO will keep your stack super short. Miðgarðr—the only one that is completely visible to mankind . The four onboard BL_Heli-S ESCs each have a peak current rating of 30A, and can run OneShot125, OneShot 42, MultiShot, and even DShot.
The weight savings of the all in one board together with the 36x36mm mounting holes make this ideal for tight builds.
- STM32 F405 MCU (Spi connected to Gyro)
- 4 – 30A Bl_heli_s Speed controllers
- MPU6000 (the 6 axis SPI Gyrometer + Accelerometer)
- 4- 30Amp speed controllers (BB2, 48MHZ)
- D-shot Support
- SBUS/PPM + DSMX Ports
- 5v1a Clean Sbec
- Built-in Current Sensor/voltage
- Built in PBD
- Blheli_S Firmware /
- LIPO direct input (2-4S).
- 30x30mm w/ M3 holes
